YX830

YX830

Reflow Soldering Equipment by Wenzhou Yingxing Technology Co.,Ltd (7 more products)

Note: Your request will be directed to Wenzhou Yingxing Technology Co.,Ltd

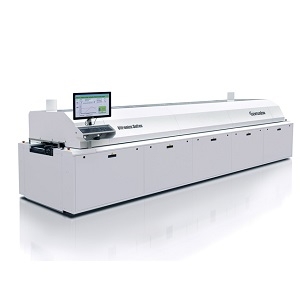

The YX830 from Wenzhou Yingxing Technology Co.,Ltd is a Reflow Soldering Equipment with Heating Zone Length 1400 mm, Max Pcb Width 280 mm. More details for YX830 can be seen below.

Product Specifications

Product Details

  • Part Number
    YX830
  • Manufacturer
    Wenzhou Yingxing Technology Co.,Ltd

General Parameters

  • Cooling Zones
    2 Zones
  • Heating Zones
    8 Zones
  • Heating Zone Length
    1400 mm
  • Max Pcb Width
    280 mm
  • Control Type
    Touch Screen Control
  • Conveyor Direction
    Right to Left, Left to Right
  • Conveyor Height
    880 ± 20 mm
  • Conveyor Speed
    0 - 1350 mm
  • Mesh Belt Width
    300 mm
  • Cooling Method
    Natural Air Cooling
  • Heat Type
    Hot Wind
  • Power Consumption
    3.5 kW
  • Power Supply
    AC 220/380V +/-10% 50 Hz
  • Startup power
    11 kW
  • Temp Range
    400 Degree C
  • Net Weight
    250 kg
  • Overall Dimensions
    2440 x 680 x 1200 mm
