TEA-1000

TEA-1000

Reflow Soldering Equipment by Shenzhen JT Automation Equipment Co., Ltd. (18 more products)

Note: Your request will be directed to Shenzhen JT Automation Equipment Co., Ltd.

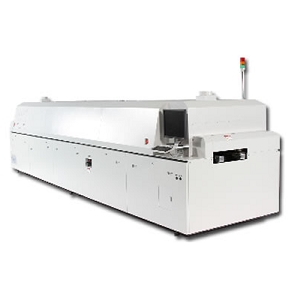

The TEA-1000 from Shenzhen JT Automation Equipment Co., Ltd. is a Reflow Soldering Equipment with Heating Zone Length 3890 mm, Max Pcb Width 400 mm. More details for TEA-1000 can be seen below.

Product Specifications

Product Details

  • Part Number
    TEA-1000
  • Manufacturer
    Shenzhen JT Automation Equipment Co., Ltd.

General Parameters

  • Cooling Zones
    2 Zones
  • Heating Zones
    10 Zones
  • Heating Zone Length
    3890 mm
  • Max Pcb Width
    400 mm
  • Component Height
    25 to 30 mm
  • Control Type
    PC+PLC
  • Conveyor Direction
    Left to Right, Right to Left
  • Conveyor Height
    900 ± 20 mm
  • Conveyor Speed
    300 to 2000 mm/min
  • Conveyor Type
    Mesh
  • Cooling Method
    Air Cooling
  • Exhausting Flow Per Port
    10 m³/min
  • General Power
    10 kW
  • Startup power
    36 kW
  • Temp Range
    300 Degree C
  • Net Weight
    2600 kg
  • Overall Dimensions
    6000 x 1430 x 1530 mm
