CR8000

CR8000

Reflow Soldering Equipment by Manncorp (7 more products)
Download Brochure Request Quote

Note: Your request will be directed to Manncorp

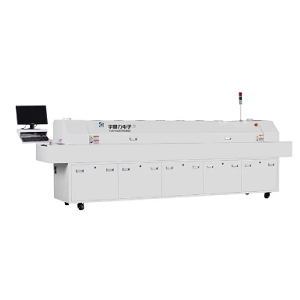

The CR8000 from Manncorp is a Reflow Soldering Equipment with Heating Zone Length 2700 mm, Max Pcb Width 450 mm. More details for CR8000 can be seen below.

Product Specifications

Product Details

  • Part Number
    CR8000
  • Manufacturer
    Manncorp

General Parameters

  • Cooling Zones
    1 Zone
  • Heating Zones
    16 Zones
  • Heating Zone Length
    2700 mm
  • Max Pcb Width
    450 mm
  • Component Height
    Top - 30 mm, Bottom - 25 mm
  • Control Type
    PC Control
  • Conveyor Direction
    Left to Right
  • Conveyor Height
    900 ± 20 mm
  • Conveyor Speed
    400 to 1800 mm/min
  • Mesh Belt Width
    570 mm
  • Cooling Method
    Air
  • Exhausting Flow Per Port
    400 CFM per port
  • Heat Type
    Hot Air Convection
  • Power Supply
    220 VAC 3-Phase
  • Temp Accuracy
    ±1 Degree C
  • Temp Range
    350 Degree C
  • Net Weight
    1810 kg
  • Overall Dimensions
    4800 x 1510 x 1810 mm
