R50MD

R50MD

Reflow Soldering Equipment by Beijing Glichn S&T Development Co.,Ltd (14 more products)
Download Brochure Request Quote

Note: Your request will be directed to Beijing Glichn S&T Development Co.,Ltd

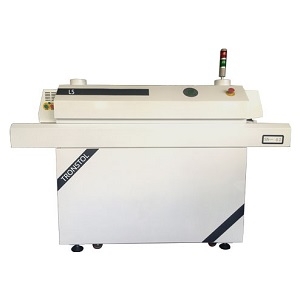

The R50MD from Beijing Glichn S&T Development Co.,Ltd is a Reflow Soldering Equipment with Heating Zone Length 1730 mm, Max Pcb Width 300 to 350 mm. More details for R50MD can be seen below.

Product Specifications

Product Details

  • Part Number
    R50MD
  • Manufacturer
    Beijing Glichn S&T Development Co.,Ltd

General Parameters

  • Heating Zones
    5 Zones
  • Heating Zone Length
    1730 mm
  • Max Pcb Width
    300 to 350 mm
  • Control Type
    Computer, Meter
  • Conveyor Direction
    Left to Right, Right to Left
  • Conveyor Height
    880±20 mm, Chain : 900±20 mm
  • Conveyor Speed
    0 to 2000 mm/min
  • Conveyor Type
    Chain + Mesh
  • Mesh Belt Width
    50 to 300 mm
  • Cooling Method
    Air Cooling
  • Heat Type
    Hot Air
  • General Power
    4.5 kW(Work Power)
  • Power Supply
    380 VAC
  • Startup power
    12 kW
  • Temp Accuracy
    ±1 Degree C
  • Temp Range
    400 Degree C
  • Temperature control precision
    PID + SSR
  • Temperature deviation on PCB
    ±2 to 3 Degree C
  • Net Weight
    400 kg
  • Overall Dimensions
    3100 x 750 x 1400 mm(L x W x H)
