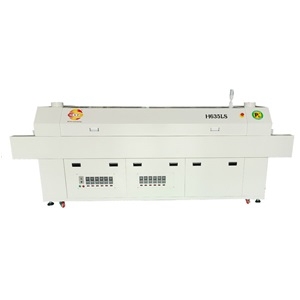

The RS-600Ne from JTU PTE LTD. is a Reflow Soldering Equipment with Heating Zone Length 2330 mm, Max Pcb Width 50 to 460 mm. More details for RS-600Ne can be seen below.

Product Specifications

Product Details

  • Part Number
    RS-600Ne
  • Manufacturer
    JTU PTE LTD.

General Parameters

  • Cooling Zones
    1 Zone
  • Heating Zones
    12 Zones
  • Heating Zone Length
    2330 mm
  • Max Pcb Width
    50 to 460 mm
  • Conveyor Direction
    Left to Right, Right to Left
  • Conveyor Height
    900 ± 20 mm
  • Conveyor Speed
    300 to 2000 mm/min
  • Conveyor Type
    Rails, Mesh
  • Exhausting Flow Per Port
    10 m3/min x 2 pcs
  • Heat Type
    PID closed loop control + SSR drive
  • General Power
    45 kW
  • Power Consumption
    10 kW
  • Startup power
    28 kW
  • Temp Range
    300 Degree C
  • Temperature control precision
    ± 1 Degree C
  • Temperature deviation on PCB
    ± 1.5 Degree C
  • Net Weight
    1700 kg
  • Overall Dimensions
    3605 x 1353 x 1490 mm
