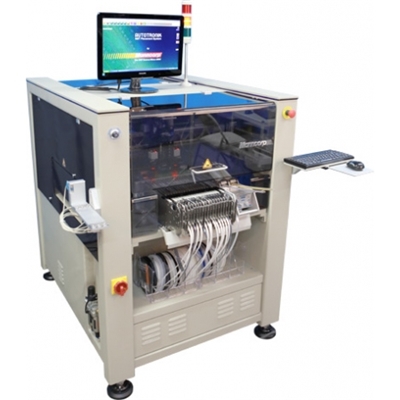

MC-385V1V SMT Pick and Place

MC-385V1V SMT Pick and Place

Pick and Place Machine by Manncorp (12 more products)
Download Brochure Request Quote

Note: Your request will be directed to Manncorp

The MC-385V1V SMT Pick and Place from Manncorp is a Pick and Place Machine with Max no. of feeders 128. More details for MC-385V1V SMT Pick and Place can be seen below.

Product Specifications

Product Details

  • Part Number
    MC-385V1V SMT Pick and Place
  • Manufacturer
    Manncorp

General Parameters

  • Type
    Auto
  • Number of Heads
    1 Head
  • Placement Rate
    5000 cph
  • Placement accuracy
    30 µm, 3 Sigma
  • PCB Size
    350 x 435 mm
  • Max no. of feeders
    128
  • Smallest Component capability
    0201 (01005 optional)
  • Largest Component size
    100 mm x 150 mm (3.94" x 5.9")
  • Max travel area
    350 mm x 435 mm
  • Vision system
    Yes
  • Overall Dimensions
    1270 x 990 x 1320 mm

Technical Documents
View more details on the manufacturer's website
